The invention relates to a fused optical fiber connector, which connects the product with the optical cable through the optical fiber welding machine, has the advantages of simple operation and stable product performance, and is widely used in optical fiber to the home.
1. Low insertion loss and high return loss.
2. Excellent end-face geometry parameter.
3. Easy to operate, high reliability.
1. FTTH, FTTR and FTTX
2. Image transmission networks
3. Optical test instrument
4. Photoelectric automatic control system
|

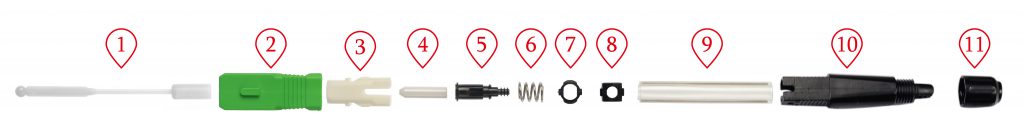

No. |
Part Name |
Material |
Remarks |
|
1 |
Dust Cap |
PE |
Consistent with ROHS, REACH |
|
2 |
Housing |
PBT |
|
|
3 |
White Housing |
PBT |
|
|
4 |
Ceramic Ferrule |
Zirconia Ceramics |
|
|
5 |
Caudal Peduncle |
PC |
|
|
6 |
Spring |
SUS304 |
|
|
7 |
Stopper |
PC |
|
|
8 |
Clasp |
PC |
|
|
9 |
Fusion Tube |
304, PE, EVA |
|
|
10 |
Main-Body |
PC |
|
|
11 |
Tail Sleeve |
PC |
|
No. |
Items |
Specifications |
Remarks |
|
1 |
Model Number |
FG-SOC-SC-L6004 |
Consistent
with |
|
2 |
Product Type |
Splice On Connector |
|
|
3 |
Connector Length |
60mm |
|
|
4 |
Cable Diameter |
2*3mm, φ3.0mm |
|
|
5 |
Applicable Filed |
Drop Cable, Indoor Cable, Outdoor Cable |
|
|
6 |
Fiber Mode |
Single & Multi-Mode |
|
|
7 |
Connector Structure |
Pre-embedded Type |
|
|
8 |
Operating Wavelength |
1260～1650nm |
|
|
9 |
Insertion Loss |
0.3dB (Typical) / 0.5dB (Max.) |
|
|
10 |
Return Loss |
APC ≥50dB / UPC≥45dB |
|
|
11 |
Repeatability |
≤0.2dB |
|
|
12 |
Interchangeability |
≤0.2dB |
|
|
13 |
Tensile Strength |
≥45N (Δ IL≤ 0.2dB) |
|
|
14 |
Operation Time |
About 50 Seconds |
|
|
15 |
Reusable |
≥10 Times |
|
|
16 |
Operating Temperature |
-40～+85℃ |
