FG-QAC-SC-L6001 Pre-Polished Fiber Fast Connectors, Blue Field Installable Fiber Optic Connector
FG-QAC-SC-L6001 Quick Assembly Connector
FG-QAC-SC-L6001 Quick Assembly Connector
FG-QAC-SC-L6001 Quick Assembly Connector
FG-QAC-SC-L6001 Quick Assembly Connector
FG-QAC-SC-L6001 Quick Assembly Connector

Product Overview:

They are mainly used for outdoor waterproof installation and connector FTTH access equipment. Connect fiber input equipment such as the fiber distribution box’s output port is HW adapter, it can be quickly screwed and fixed with the corresponding adapter and then docked with the output adapter. On-site operation is simple and easy to install, and no special tools are required.

Product Features:

  1. Low insertion loss and high return loss.
  2. Excellent end-face geometry parameter.
  3. Easy to operate, high reliability.

Application Scenarios:

  1. FTTH, FTTR and FTTX
  2. Image transmission networks
  3. Optical test instrument
  4. Photoelectric automatic control system

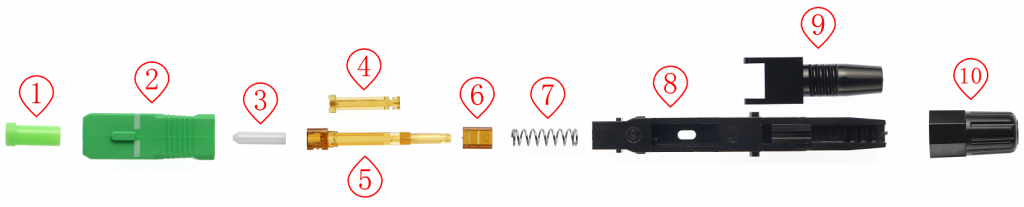

No.

Part Name

Material

Remarks

1

Dust Cap

PE

Consistent with ROHS, REACH

2

Housing

PBT

3

Ceramic Ferrule

Zirconia Ceramics

4

V-Groove Cover Plate

PEI

5

Fiber Optic V-Groove

PEI

6

Fiber Locking Mechanism

PEI

7

Spring

SUS304

8

Main-Body

PC

9

Wire Clamps

PC

10

Tail Sleeve

PC

No.

Items

Specifications

Remarks

1

Model Number

FG-QAC-SC-L6001

Consistent with
GR-326-CORE;
IEC 61300;
YD/T2341.1-2011

2

Product Type

Quick Assembly Connector

3

Connector Length

60mm

4

Cable Diameter

φ3.0, 2.0 Round Cable

5

Applicable Filed

Drop Cable, Indoor Cable, Outdoor Cable

6

Fiber Mode

Single & Multi-Mode

7

Connector Structure

Pre-embedded Type

8

Operating Wavelength

1260～1650nm

9

Insertion Loss

0.3dB (Typical) / 0.5dB (Max.)

10

Return Loss

APC ≥50dB / UPC≥45dB

11

Repeatability

≤0.2dB

12

Interchangeability

≤0.2dB

13

Tensile Strength

≥45N (Δ IL≤ 0.2dB)

14

Operation Time

About 50 Seconds

15

Reusable

≥10 Times

16

Operating Temperature

-40～+85℃
