They are mainly used for outdoor waterproof installation and connector FTTH access equipment. Connect fiber input equipment such as the fiber distribution box’s output port is HW adapter, it can be quickly screwed and fixed with the corresponding adapter and then docked with the output adapter. On-site operation is simple and easy to install, and no special tools are required.
1. Low insertion loss and high return loss.
2. Excellent end-face geometry parameter.
3. Easy to operate, high reliability.
1. FTTH, FTTR and FTTX
2. Image transmission networks
3. Optical test instrument
4. Photoelectric automatic control system
|

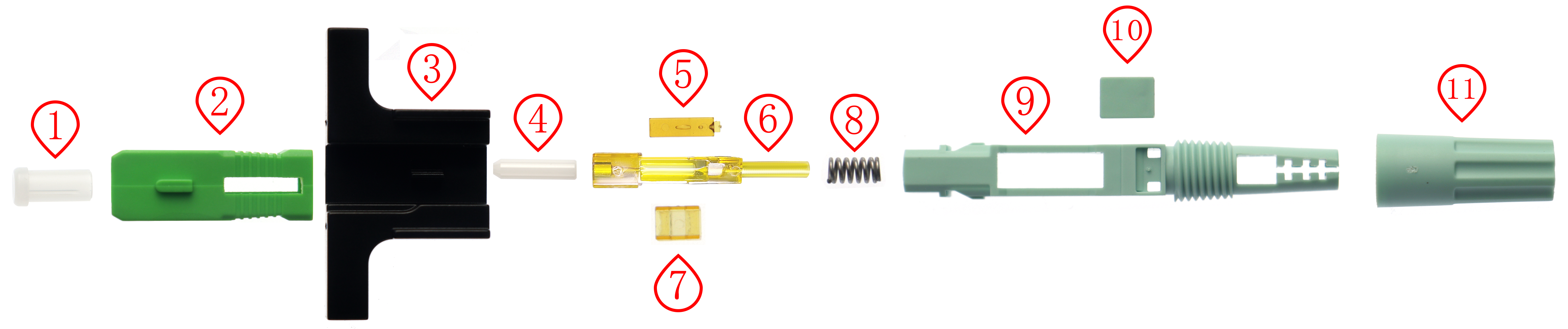

No. |
Part Name |
Material |
Remarks |
|
1 |
Dust Cap |
PE |
Consistent with ROHS, REACH |
|
2 |
Housing |
PBT |
|
|
3 |
Opener |
PC |
|
|
4 |
Ceramic Ferrule |
Zirconia Ceramics |
|
|
5 |
V-Groove Cover Plate |
PEI |
|
|
6 |
Fiber Optic V-Groove |
PEI |
|
|
7 |
Fiber Locking Mechanism |
PEI |
|
|
8 |
Spring |
SUS304 |
|
|
9 |
Main-Body |
PC |
|
|
10 |
Spring Cap |
PC |
|
|
11 |
Tail Sleeve |
PC |
|
No. |
Items |
Specifications |
Remarks |
|
1 |
Model Number |
FG-QAC-SC-L5507 |
Consistent
with |
|
2 |
Product Type |
Quick Assembly Connector |
|
|
3 |
Connector Length |
55mm |
|
|
4 |
Cable Diameter |
φ3.0, 2.0, Round Cable, 2*3mm Flat Cable |
|
|
5 |
Applicable Filed |
Drop Cable, Indoor Cable, Outdoor Cable |
|
|
6 |
Fiber Mode |
Single & Multi-Mode |
|
|
7 |
Connector Structure |
Pre-embedded Type |
|
|
8 |
Operating Wavelength |
1260～1650nm |
|
|
9 |
Insertion Loss |
0.3dB (Typical) / 0.5dB (Max.) |
|
|
10 |
Return Loss |
APC ≥50dB / UPC≥45dB |
|
|
11 |
Repeatability |
≤0.2dB |
|
|
12 |
Interchangeability |
≤0.2dB |
|
|
13 |
Tensile Strength |
≥45N (Δ IL≤ 0.2dB) |
|
|
14 |
Operation Time |
About 50 Seconds |
|
|
15 |
Reusable |
≥10 Times |
|
|
16 |
Operating Temperature |
-40～+85℃ |
