Quick assembly LC fiber optic fast connector can provide quick and easy terminations of fibers in the field, The installer can terminate and make connections in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives, or costly curing ovens, with features of high installation quality, high success rate, and high reliability.
1. Low insertion loss and high return loss.
2. Excellent end-face geometry parameter.
3. Easy to operate, high reliability.
1. FTTH, FTTR and FTTX
2. Image transmission networks
3. Optical test instrument
4. Photoelectric automatic control system
|

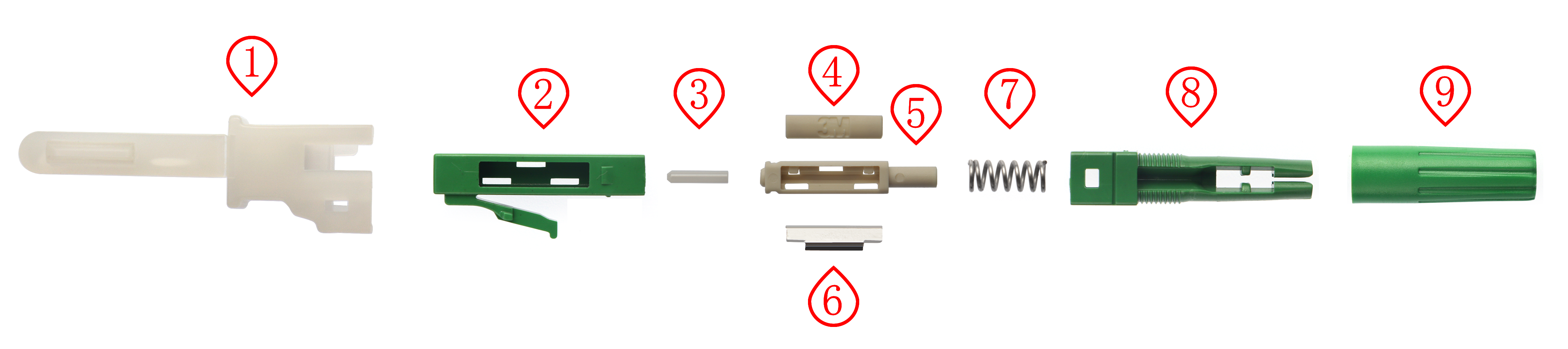

No. |
Part Name |
Material |
Remarks |
|
1 |
Dust Cap and Opener |
PE |
Consistent with ROHS, REACH |
|
2 |
Housing |
PEI |
|
|
3 |
Ceramic Ferrule |
Zirconia Ceramics |
|
|
4 |
V-Groove Cover Plate |
PA46 |
|
|
5 |
Fiber Optic V-Groove |
PA46 |
|
|
6 |
Fiber Locking Mechanism |
Aluminum Metal |
|
|
7 |
Spring |
SUS304 |
|
|
8 |
Main-Body |
PEI |
|
|
9 |
Tail Sleeve |
PEI |
|
No. |
Items |
Specifications |
Remarks |
|
1 |
Model Number |
FG-QAC-LC-L5101 |
Consistent
with |
|
2 |
Product Type |
Quick Assembly Connector |
|
|
3 |
Connector Length |
51mm |
|
|
4 |
Cable Diameter |
φ0.9, φ1.6, φ2.0mm Round Cable, 2*1.6mm Flat Cable |
|
|
5 |
Applicable Filed |
Drop Cable, Indoor Cable, Outdoor Cable |
|
|
6 |
Fiber Mode |
Single & Multi-Mode |
|
|
7 |
Connector Structure |
Pre-embedded Type |
|
|
8 |
Operating Wavelength |
1260～1650nm |
|
|
9 |
Insertion Loss |
0.3dB (Typical) / 0.5dB (Max.) |
|
|
10 |
Return Loss |
APC ≥50dB / UPC≥45dB |
|
|
11 |
Repeatability |
≤0.2dB |
|
|
12 |
Interchangeability |
≤0.2dB |
|
|
13 |
Tensile Strength |
≥45N (Δ IL≤ 0.2dB) |
|
|
14 |
Operation Time |
About 50 Seconds |
|
|
15 |
Reusable |
≥10 Times |
|
|
16 |
Operating Temperature |
-40～+85℃ |
